Recommended Hardware and OS

Prequisites: You have already set up Validator Node and Storage Node.
CPU
4 Cores
Memory
16 GB RAM
Storage
500GB/1TB NVMe SSD
Bandwidth
500mbps
OS
Linux

Storage KV Node Installation

1. Install Dependencies

shell
sudo apt-get update sudo apt-get install git cargo clang cmake build-essential -y

2. Install Rustup

shell
curl --proto '=https' --tlsv1.2 -sSf https://sh.rustup.rs | sh
Just press Enter to choose default installation. Then:
shell
. "$HOME/.cargo/env"
​

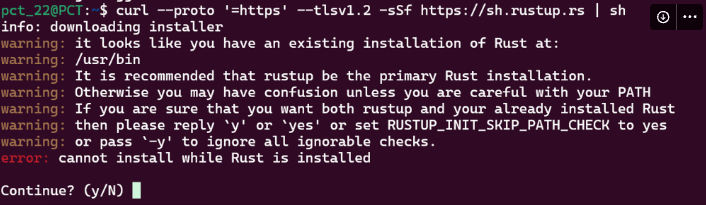

NOTE: IF IT SHOWS THAT RUSTUP HAS ALREADY BEEN INSTALLED
Image without caption
CHOOSE β€œNO” AND THEN REMOVE IT WITH:
shell
sudo rm /usr/bin/rustc sudo rm /usr/bin/cargo
NOW YOU CAN INSTALL RUSTUP LIKE ABOVE.

3. Install GO

shell
cd $HOME && \ ver="1.22.0" && \ sudo rm -rf /usr/local/go && \ sudo curl -fsSL "https://golang.org/dl/go$ver.linux-amd64.tar.gz" | sudo tar -C /usr/local -xzf - && \ grep -qxF 'export PATH=$PATH:/usr/local/go/bin:$HOME/go/bin' ~/.bash_profile || echo 'export PATH=$PATH:/usr/local/go/bin:$HOME/go/bin' >> ~/.bash_profile && \ source ~/.bash_profile && \ go version

4. Build binary

shell
cd $HOME git clone -b v1.1.0-testnet https://github.com/0glabs/0g-storage-kv.git cd 0g-storage-kv git submodule update --init cargo build --release sudo mv "$HOME/0g-storage-kv/target/release/zgs_kv" /usr/local/bin
Note: This step can take up to 30 minutes, just let it run.
Image without caption

5. Create DB & KV-DB Directory

shell
mkdir -p "$HOME/0g-storage-kv/db" "$HOME/0g-storage-kv/kv-db"

6. Create Config File

shell
cp $HOME/0g-storage-kv/run/config_example.toml $HOME/0g-storage-kv/run/config.toml

7. Set Up Environment Variables

Run the command below and input your storage node IP and port in this formatΒ http://x.x.x.x:5678.
shell
read -p "Enter your storage node IP and port for zgs_node_urls configuration: " ZGS_NODE_URLS
Run the command below and input your validator node IP and port in this formatΒ http://x.x.x.x:8545.
shell
read -p "Enter your validator node IP and port for blockchain_rpc_endpoint configuration: " BLOCKCHAIN_RPC_ENDPOINT
NOTE: Make sure the validator RPC that you are going to use has blockΒ 401178Β before you run Storage KV by running the command below. Check it using:
shell
curl -X POST http://yourvalidatorip:port -H "Content-Type: application/json" -d '{"jsonrpc":"2.0","method":"eth_getBlockByNumber","params":["0x61B8A",false],"id":1}'
Now set up all environment variables:
shell
echo 'export DB_DIR="$HOME/0g-storage-kv/db"' >> ~/.bash_profile echo 'export ZGSKV_DB_DIR="$HOME/0g-storage-kv/kv-db"' >> ~/.bash_profile echo 'export ZGS_NODE_URLS="'$ZGS_NODE_URLS'"' >> ~/.bash_profile echo 'export ZGSKV_CONFIG_FILE="$HOME/0g-storage-kv/run/config.toml"' >> ~/.bash_profile echo 'export ZGSKV_LOG_CONFIG_FILE="$HOME/0g-storage-kv/run/log_config"' >> ~/.bash_profile echo 'export BLOCKCHAIN_RPC_ENDPOINT="'$BLOCKCHAIN_RPC_ENDPOINT'"' >> ~/.bash_profile source ~/.bash_profile

8. Update Config File

shell
sed -i "s|^\s*#\?\s*db_dir\s*=.*|db_dir = \"$DB_DIR\"|" "$ZGSKV_CONFIG_FILE" sed -i "s|^\s*#\?\s*kv_db_dir\s*=.*|kv_db_dir = \"$ZGSKV_DB_DIR\"|" "$ZGSKV_CONFIG_FILE" sed -i 's|^\s*#\?\s*rpc_listen_address\s*=.*|rpc_listen_address = "0.0.0.0:6789"|' "$ZGSKV_CONFIG_FILE" sed -i "s|^\s*#\?\s*zgs_node_urls\s*=.*|zgs_node_urls = \"$ZGS_NODE_URLS\"|" "$ZGSKV_CONFIG_FILE" sed -i "s|^\s*#\?\s*log_config_file\s*=.*|log_config_file = \"$ZGSKV_LOG_CONFIG_FILE\"|" "$ZGSKV_CONFIG_FILE" sed -i "s|^\s*#\?\s*blockchain_rpc_endpoint\s*=.*|blockchain_rpc_endpoint = \"$BLOCKCHAIN_RPC_ENDPOINT\"|" "$ZGSKV_CONFIG_FILE" sed -i 's|^\s*#\?\s*log_contract_address\s*=.*|log_contract_address = "0xB7e39604f47c0e4a6Ad092a281c1A8429c2440d3"|' "$ZGSKV_CONFIG_FILE" sed -i 's|^\s*#\?\s*log_sync_start_block_number\s*=.*|log_sync_start_block_number = 401178|' "$ZGSKV_CONFIG_FILE"

9. Create Service File

Create a service file to run the storage kv node in the background.
shell
sudo tee /etc/systemd/system/zgskv.service > /dev/null <<EOF [Unit] Description=0G Storage KV Node After=network.target [Service] User=$USERType=simple ExecStart=/usr/local/bin/zgs_kv --config $HOME/0g-storage-kv/run/config.toml Restart=on-failure LimitNOFILE=65535 [Install] WantedBy=multi-user.target EOFclear

10. Start Storage Node

shell
sudo systemctl daemon-reload && \ sudo systemctl enable zgskv && \ sudo systemctl start zgskv && \ sudo systemctl status zgskv

Other Useful Commands

  1. Check Log
shell
sudo journalctl -u zgskv -f -o cat
  1. Restart the Node
shell
sudo systemctl restart zgskv
  1. Stop the Node
shell
sudo systemctl stop zgskv
  1. (WARNING) Delete the Node
shell
sudo systemctl stop zgskv sudo systemctl disable zgskv sudo rm /etc/systemd/system/zgskv.service sudo rm /usr/local/bin/zgs_kv rm -rf $HOME/0g-storage-kv

Video guide:
